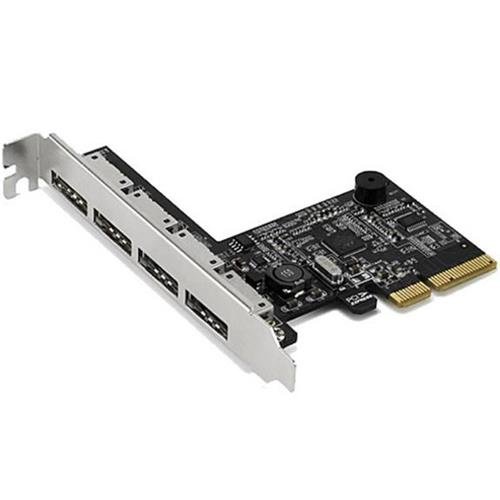

NewerTech MAXPower 4 Port eSATA 6G RAID PCIe 2.0 Controller Card Ref NWTMXPCIE6GRS4E

From faster backups and file transfers to high-end Audio/Video editing, connecting an eSATA interface equipped device to the MAXPower 4-Port eSATA RAID Card can take data transfer performance to an entirely new level. Optimally compatible with Mac Pro models and PCs with an available PCIe 2.0 slot, the MAXPower 4-Port eSATA RAID Card works with ANY eSATA interfaced equipped external hard drive to deliver significantly faster data transfer rates over the fastest factory equipped Mac Pro interface of FireWire 800. Look at how 6Gb/s eSATA compares even to USB 3.0.RAID stands for Redundant Array of Independent Drives. Put simply, this means taking multiple matching drives and arranging them together to achieve large storage space, speed, data protection, or any combination of the three. The MAXPower 4-Port eSATA RAID Card supports RAID 0, 1, 5, and 10 levels; as well as supporting JBOD (SPAN and individual drive modes). With its PCIe 2.0 interface, the MAXPower 4-Port eSATA RAID Card provides two 500MB/s data lanes for a total card bandwidth of 1000MB/s. Now you can connect up to four 1.5Gb/s, 3Gb/s, and/or 6Gb/s external drives via eSATA and experience maximum data transfer rate throughput from each.

• NewerTech RAID Web Management Utility
• 3 Year NewerTech Product Limited Warranty
• PCI-Express 2.0 x2 bandwidth (Hardware Interface PCI-Express x4)
• Up to 1000MB/s total card bandwidth under optimal conditions (SATA 6Gb/s speeds (600MB/s) will be limited by the PCIe x2 bandwidth (1000MB/s total for PCIe 2.0 x2 or 500MB/s total for PCIe 1.0 x2)
• Four eSATA 6Gb/s ports eSATA Hot Plug Support
• Port Multiplier support for up to 20 drives
• RAID level 0, 1, 5, 10, JBOD (SPAN and individual drive modes) support
• Convenient browser-based management
• SHI (Storage Health Inspector) for the monitoring and reporting of drive health
• Compatible with SATA based hard disk drives and solid state drives
